Biomotion Modular Air Handling Units (AHUs): Advanced Air Quality and Energy Efficiency Solutions for Healthcare Environments
Biomotion offers Modular Air Handling Units (AHUs) that are ideal for maintaining optimal air quality, temperature control, and energy efficiency in healthcare environments, including Modular Operating Theatres (OTs), Clean Rooms, ICUs, NICUs, Pharmaceutical Facilities, and other critical care spaces. These systems are engineered to meet the highest air quality standards, offering versatility and energy efficiency while providing customized solutions for healthcare facilities.
Key Features of Biomotion’s Modular AHU Systems:
1. Customizable Design for Versatility:
• Biomotion’s Modular AHUs are designed with flexibility in mind, offering a wide range of configurations to suit the specific needs and preferences of each healthcare facility. These units can be tailored to meet the air handling demands of different environments, from small diagnostic labs to large, high-capacity clean rooms and operating theatres.
2. Wide Capacity Range:
• The AHU systems are available in capacities ranging from 1100 m³/h to 100,000 m³/h, ensuring that they can accommodate both small-scale and large-scale healthcare environments. Whether the facility requires a low air flow for a small procedure room or high capacity for large operating theatres, Biomotion’s modular AHUs deliver efficient and effective air handling.
3. Energy Recovery Efficiency:
• These Modular AHUs are equipped with energy recovery technologies that achieve up to 87% recovery efficiency. The systems utilize advanced heat recovery options such as rotary heat wheels, counter-flow hexagonal recuperators, cross-flow plate heat recuperators, and run-around coils to maximize energy savings. This ensures that the units reduce energy consumption while maintaining the required indoor air quality and temperature levels.
4. Energy-Efficient Operation:
• The Modular AHUs come with VFD (Variable Frequency Drive) technology, which enhances energy efficiency by adjusting motor speeds according to the air handling demand. This dynamic adjustment helps minimize energy consumption, making the system ideal for facilities looking to reduce operating costs while maintaining optimal air conditions.
5. Advanced Control Features:
• The units are equipped with multi-functional controls that support advanced energy-saving functions. These controls continuously monitor key air quality parameters, such as temperature, humidity, and particulate matter, and adjust the system’s performance accordingly to maintain the optimal environment. This feature ensures that energy is used efficiently, based on real-time conditions.
6. Flexible Installation Options:
• The Modular AHUs can be floor-mounted or ceiling-mounted, offering flexibility in installation to fit various space configurations. This feature is particularly useful in healthcare settings, where space utilization and accessibility are critical. The units are available in both single and double modular configurations, allowing for scalability as healthcare facilities grow or change.
7. Comprehensive Filtration System:
• Biomotion’s Modular AHUs include high-efficiency filters, such as HEPA filters, to ensure that the air circulating through Operating Theatres (OTs), Clean Rooms, and other critical environments meets the highest cleanliness standards. The filters are designed to capture airborne particles, contaminants, and pathogens, providing a clean and sterile atmosphere.
8. Low Noise Operation:
• Designed to operate quietly, these AHUs minimize noise disturbance in sensitive healthcare environments. This is especially important in Operating Theatres, ICUs, and patient recovery rooms, where noise levels need to be kept to a minimum to support both medical procedures and patient comfort.

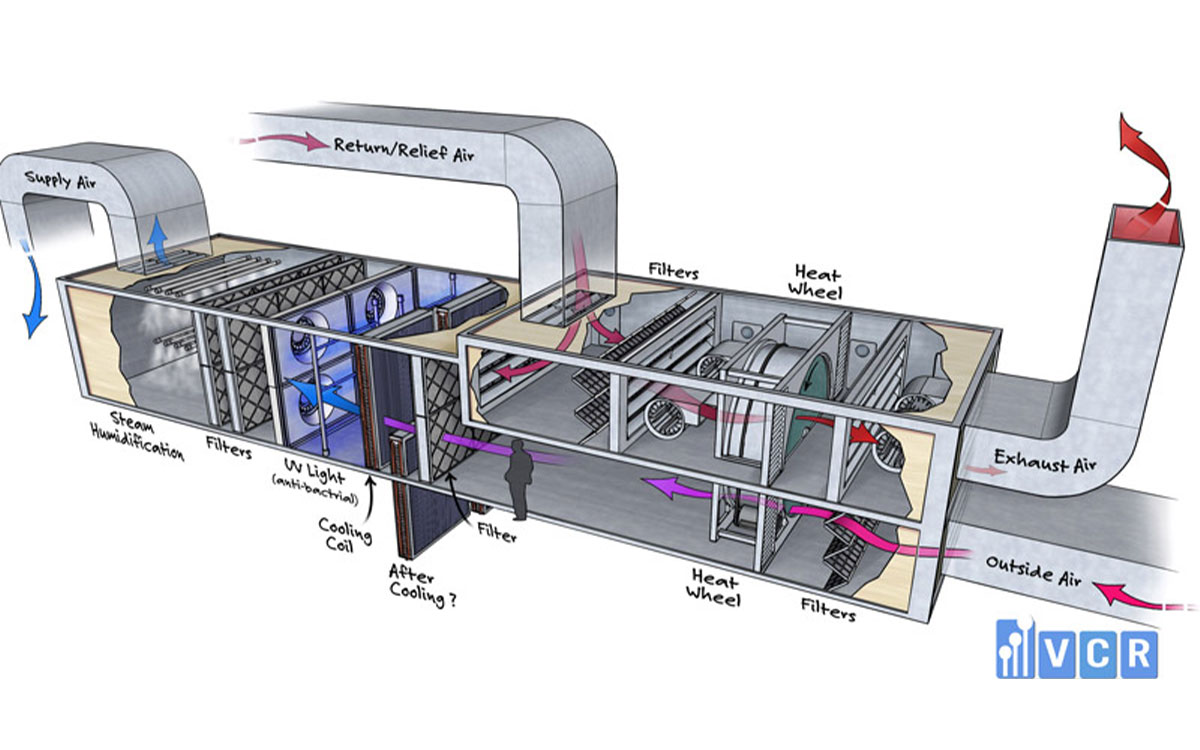

Energy Recovery Options Available:
Biomotion’s Modular AHUs offer various energy recovery options, including:
• Rotary Heat Wheel: A highly efficient heat exchanger that transfers thermal energy between the exhaust and supply air, achieving high recovery efficiency.
• Counter-flow Hexagonal Recuperator: An advanced heat recovery system that ensures minimal energy loss during the air exchange process.
• Cross-flow Plate Heat Recuperator: A plate-based system that effectively recovers heat from exhaust air and transfers it to incoming fresh air.
• Run-around Coils: A heat recovery system that uses a circulating fluid to transfer energy between two air streams.
These energy recovery systems not only help reduce the overall energy consumption but also maintain optimal environmental conditions in healthcare facilities, ensuring both sustainability and comfort.
Applications of Biomotion’s Modular AHUs:
Biomotion’s Modular AHUs are designed for use in a variety of healthcare applications, including:
• Modular Operating Theatres (OTs)
• Clean Rooms
• ICUs and NICUs
• Pharmaceutical Facilities
• Diagnostic Labs (e.g., CT Scan, MRI, and X-ray Rooms)
• Critical Care Areas
Benefits of Biomotion’s Modular AHUs:
• Customizable Solutions: Tailored to meet the specific air handling needs of different healthcare environments.
• Energy Efficiency: Equipped with VFD and energy recovery options, helping reduce energy consumption while maintaining air quality.
• Advanced Control Features: Multi-functional controls that optimize energy use based on air quality measurements.
• Flexible Installation: Floor-mounted and ceiling-mounted options available, suitable for various healthcare facility layouts.
• Superior Filtration: HEPA filters and other filtration technologies ensure a clean, sterile environment.
• Scalability: The single and double modular configurations allow for flexibility and scalability, accommodating both small and large spaces.
• Quiet Operation: Low-noise design ensures that the system operates quietly without disrupting critical care or medical procedures.
• Energy Recovery Efficiency: The use of heat recovery technologies maximizes efficiency and reduces energy costs.
Conclusion:
Biomotion’s Modular Air Handling Units (AHUs) provide an advanced, customizable, and energy-efficient solution for hospitals, Modular Operating Theatres (OTs), Clean Rooms, ICUs, and other healthcare facilities. With energy recovery systems, advanced filtration, multi-functional controls, and quiet operation, these AHUs ensure that healthcare environments remain sterile, comfortable, and cost-efficient. Whether your facility is large or small, Biomotion’s Modular AHUs offer the perfect balance of flexibility, performance, and energy savings to meet the stringent air handling requirements of healthcare environments.
