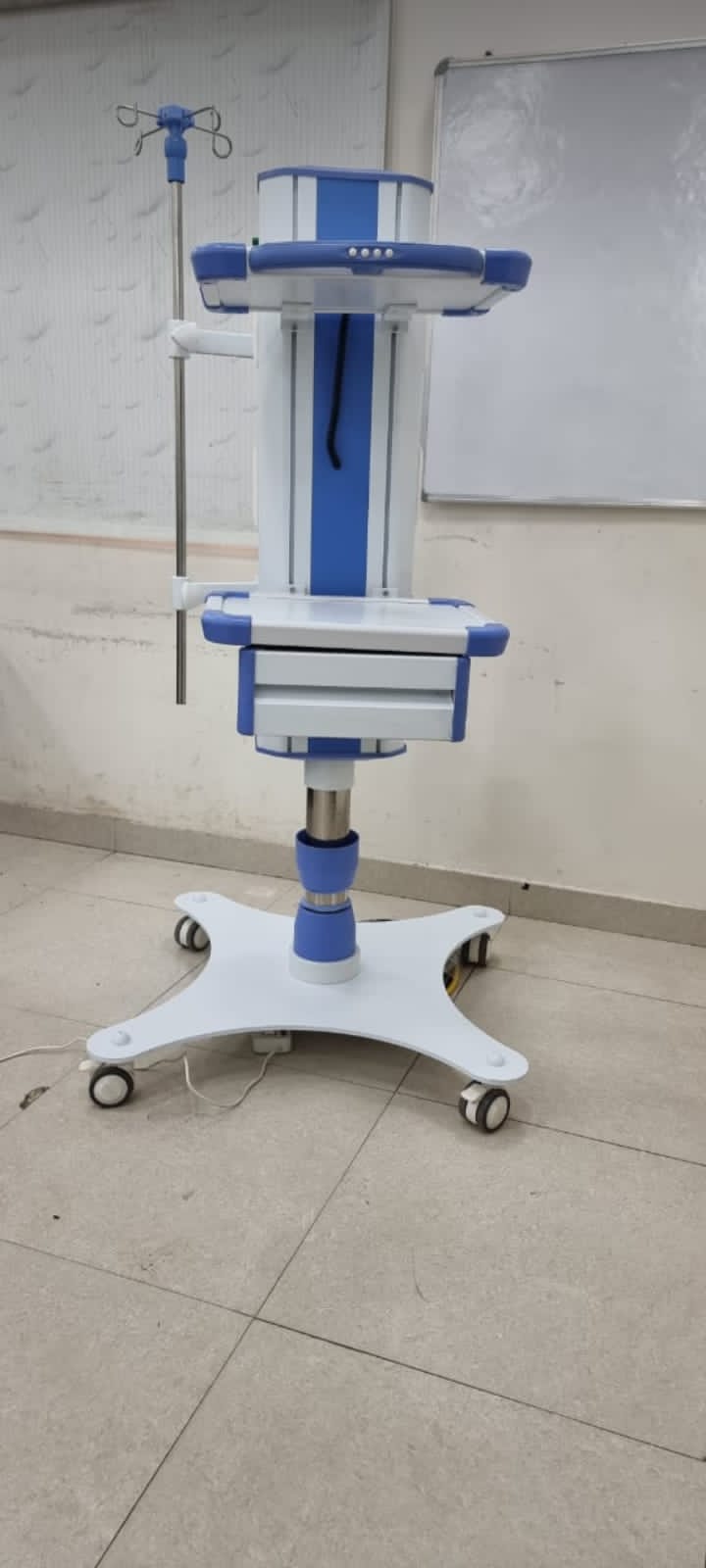

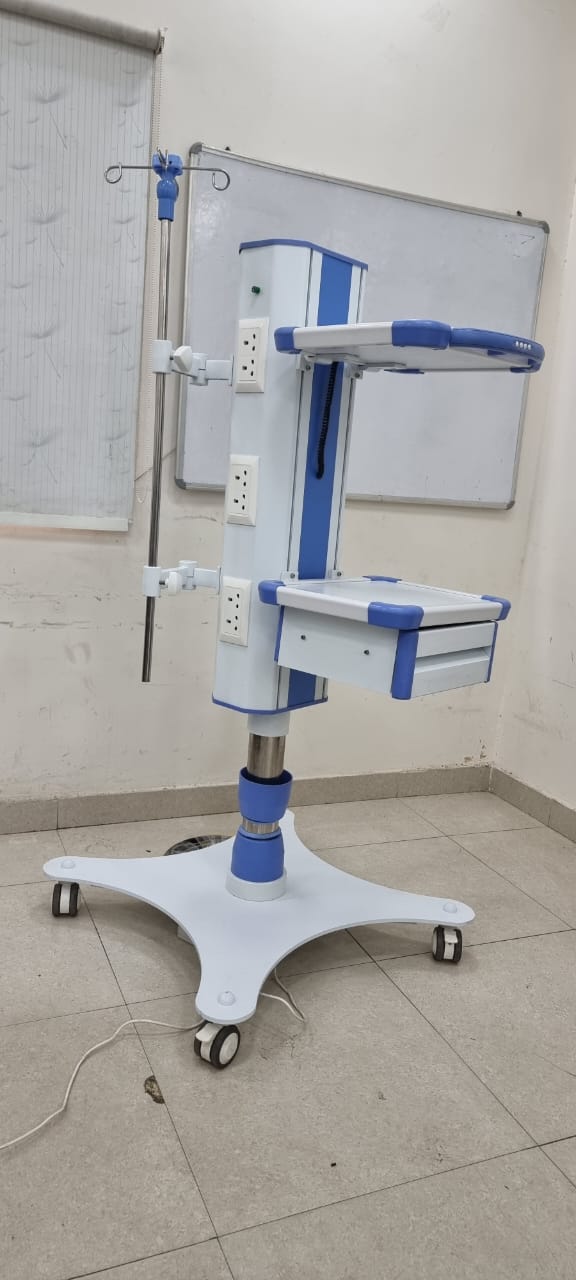

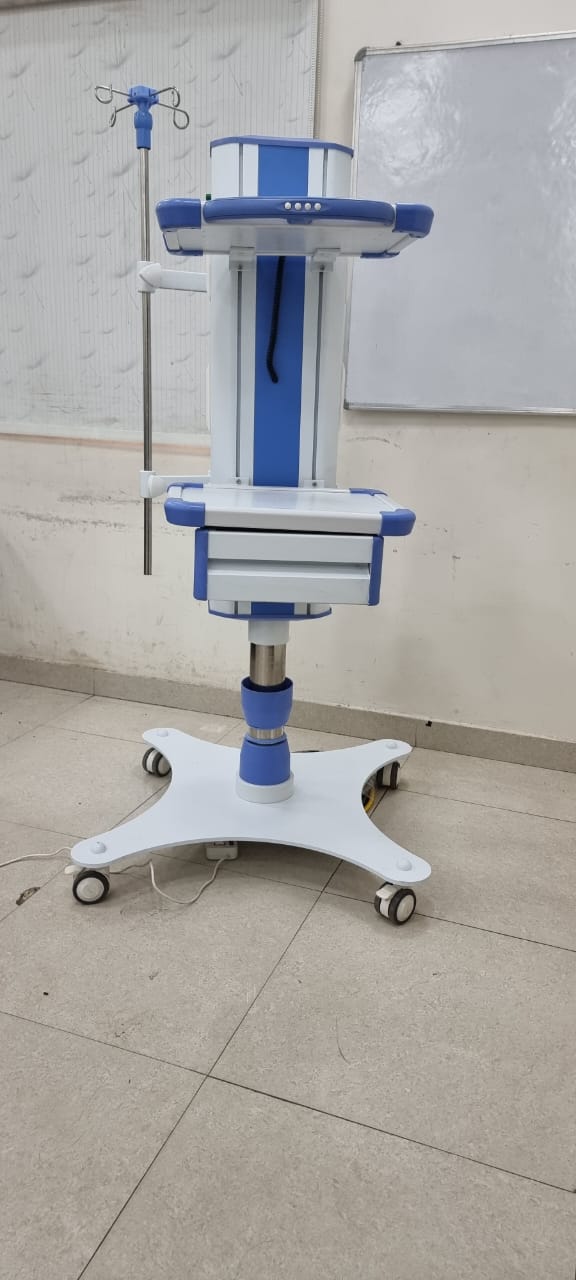

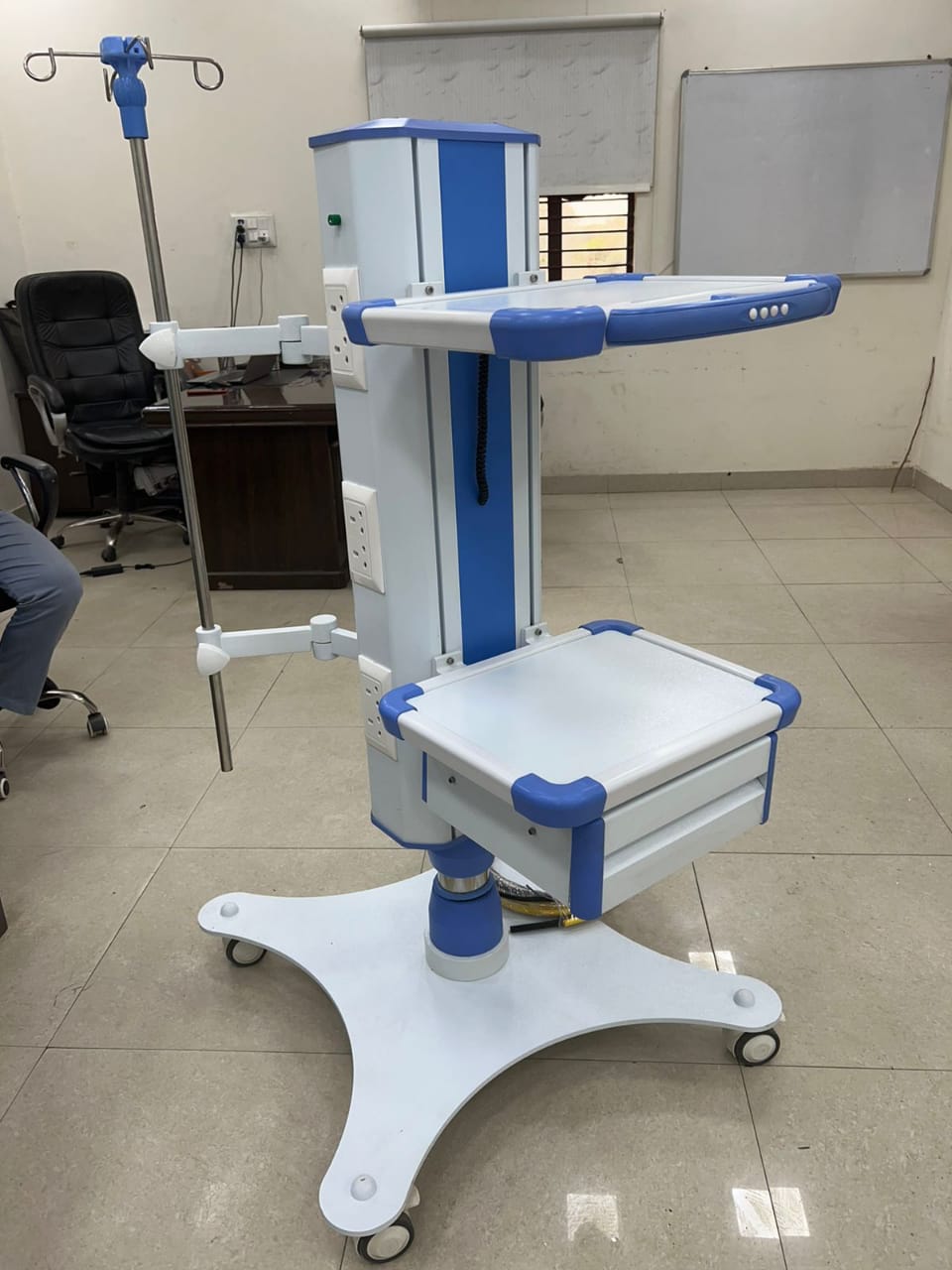

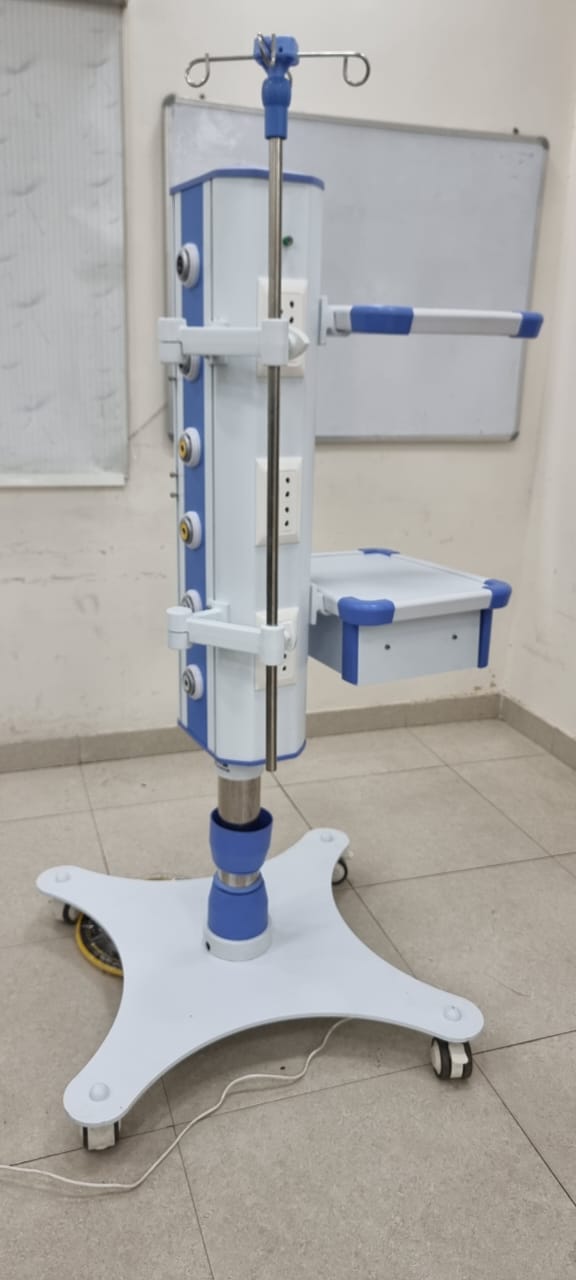

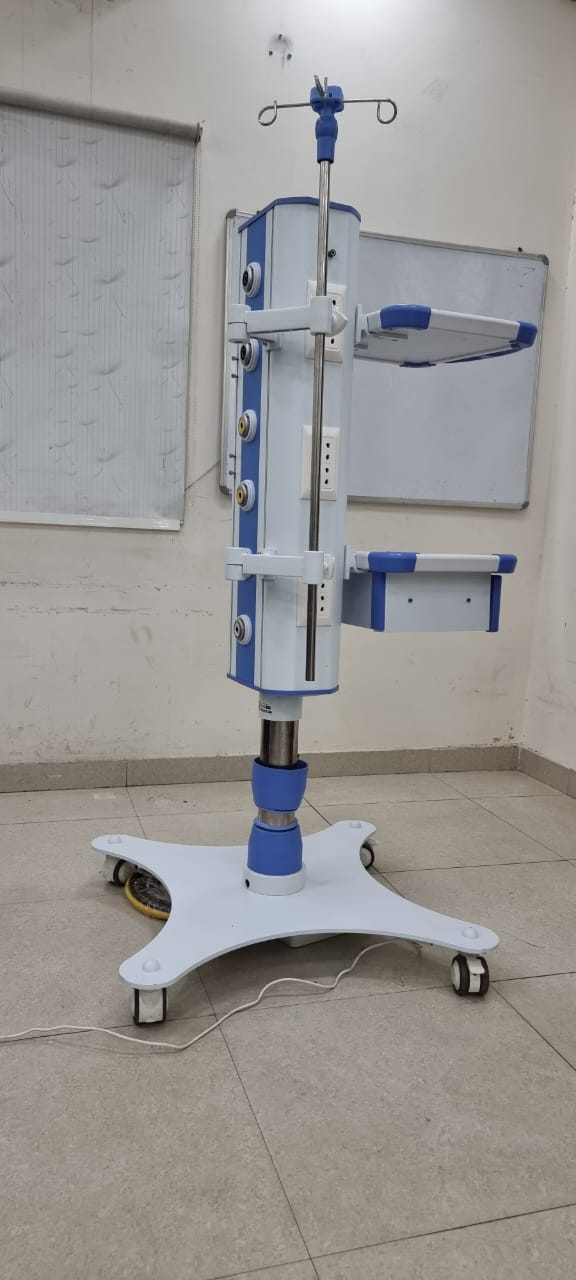

O.T Pendant Floor Model

Product Details

   Specification:-

• Functional box vertical lifting stroke 250 ~ 600mm. Motor power 100W
• The rotary joint has oxygen balloon expandable isolation brakes, just hold down the brake button on the device to easily rotate, release the button to secure the device no drift.
• The gas terminal interface standard configuration: oxygen 2pcs, suction 2pcs;

                      I.)  Different colors and shapes,

                      ii.) more than 20,000 times mating cycles;

                      iii.) using the secondary seal, with three states (on, off ,                                pull) can carry air service;

• Instrument platform: two layers (height adjustable); rounded bumper design, each platform can load 20kg;
• Weight loading  :  150kg;
• Power supply  : AC220V, 50HZ; AC110V, 60HZ
• Electrical outlet  :  6 pcs (220V / 10A);
• Potential ground terminal   :   2pcs;
• The network interface   :    RJ45 1pc;
• Drawer   :   1pc;
• Syringe pump rack 1pc, infusion pump rack 1pc;
• The main material: high-strength aluminium alloy;
