Product Details
Standard Configuration:
1. Gas interface configuration (2 oxygen,2 vacuum suction, 2 compressed air):
a. The interface color and shape are different, with anti-missing function;
b. The number of insertions and removals is more than 20,000 times
c. Use secondary sealing, with three states (on, off, pull), with gas maintenance;
2. Power socket: 10, 220V, 10A;
3. Equipotential grounding terminal: 2;
4. One stainless steel adjustable infusion rod holder;
5. One stainless steel adjustable syringe pump frame;
6. The main material is made of high-strength aluminum alloy profiles;
7. The surface treatment is electrostatic spraying; ceiling-mounted installation, stable and firm.
8. One storage item
Technical Parameters: Single Arm Mechanical
1. Working power: AC220V, 50Hz;
2. Cross arm range of motion (radius): 700-1800mm (can be configured according to hospital requirements)
3. Horizontal rotation angle: 0 ~ 340 °, the cross arm, and the terminal box can be rotated horizontally or simultaneously;
4. The net load weight is ≥120kg;
5. Instrument platform: 3 layers (height adjustable) optional 490mm * 360mm * 47mm or 550mm * 400mm * 47mm; with 10mm × 25mm side rail enclosure, rounded bumper design

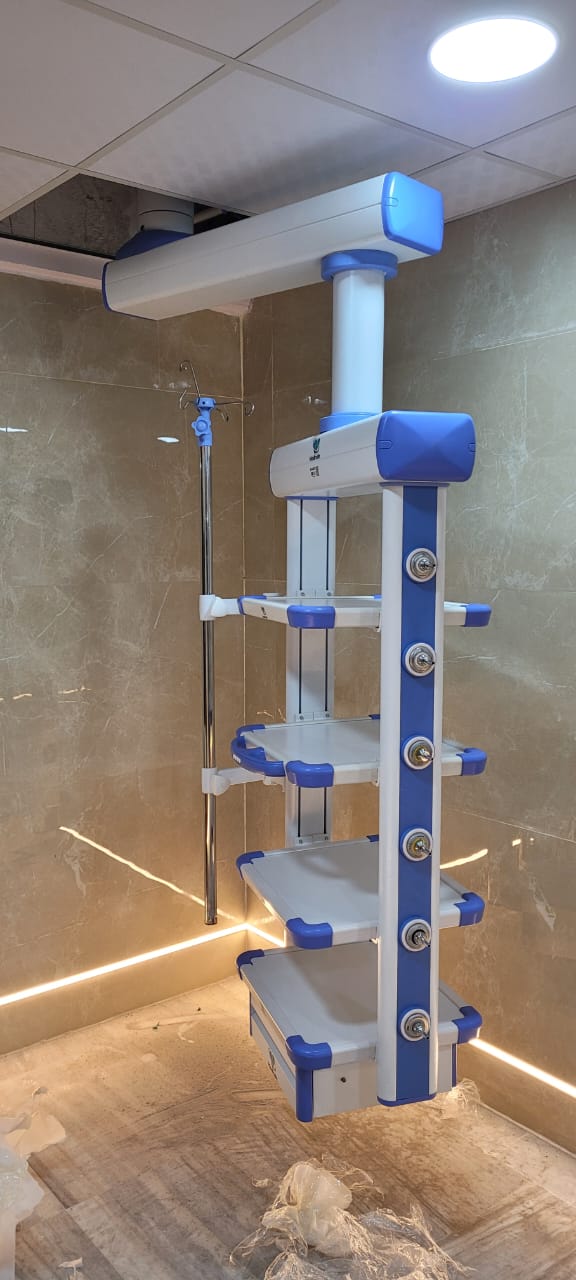

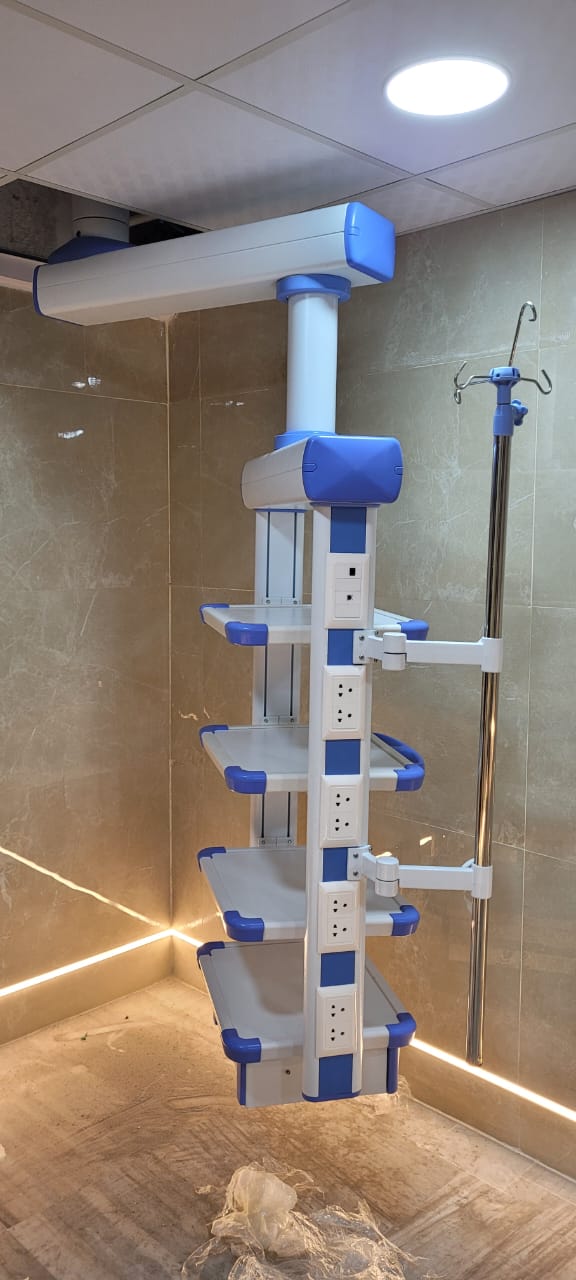

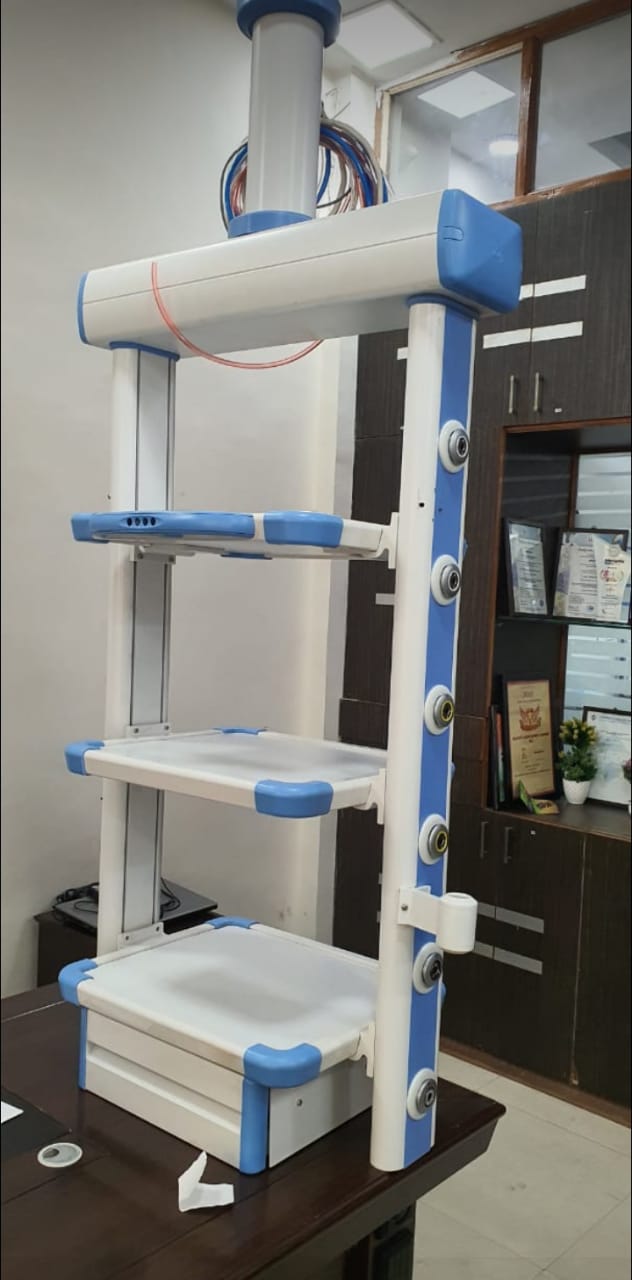

Photos
