Product Details
Description :-

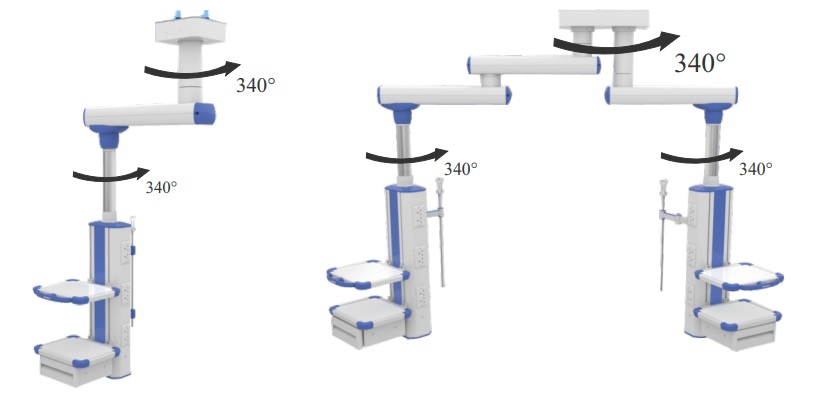

- The activity range of Horizontal arm radius 1000mm, horizontal arm and functional box can be simultaneously rotated, each horizontal rotation angle 340°.
- Functional box vertical lifting stroke 250 ~ 600mm. Motor power 100W.
- The rotary joint has oxygen balloon expandable isolation brakes, just hold down the brake button on the device to easily rotate, release the button to secure the device no drift.
- The gas terminal interface standard configuration: oxygen 2pcs, suction 2pcs;
I.) Different colors and shapes.
II.) more than 20,000 times mating cycles;
III.). using the secondary seal, with three states (on, off , pull) can carry air service;
- Instrument platform: two layers (height adjustable); rounded bumper design, each platform can load 20kg;
- Weight loading: 150kg;
- Power supply: AC220V, 50HZ; AC110V, 60HZ
- Electrical outlet: 6 pcs (220V / 10A);
- Potential ground terminal: 2pcs;
- The network interface: RJ45 1pc;
- Drawer: 1pc;
- Syringe pump rack 1pc, infusion pump rack 1pc;
- The main material: high-strength aluminium alloy;
- The surface treatment using imported high-voltage electrostatic powder spray;

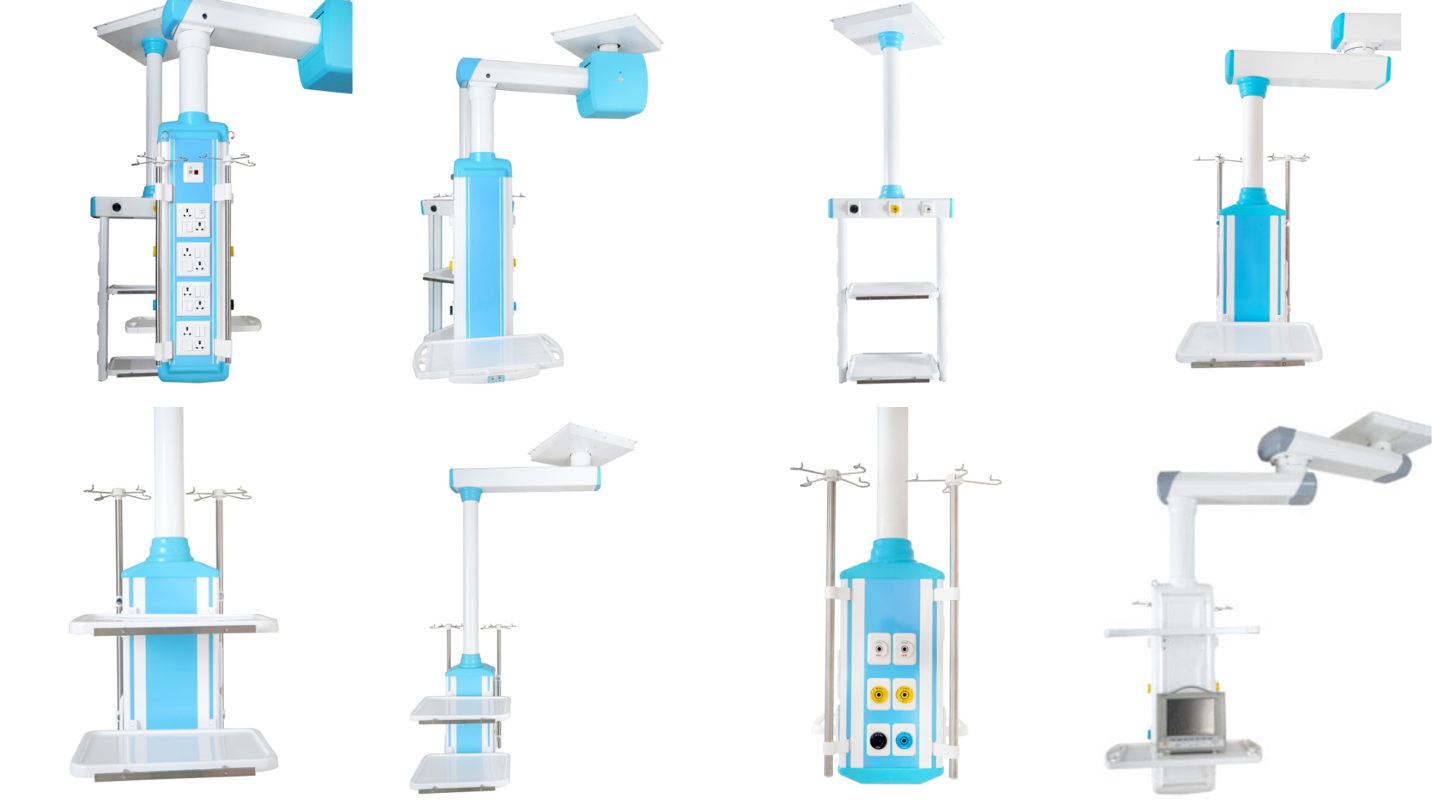

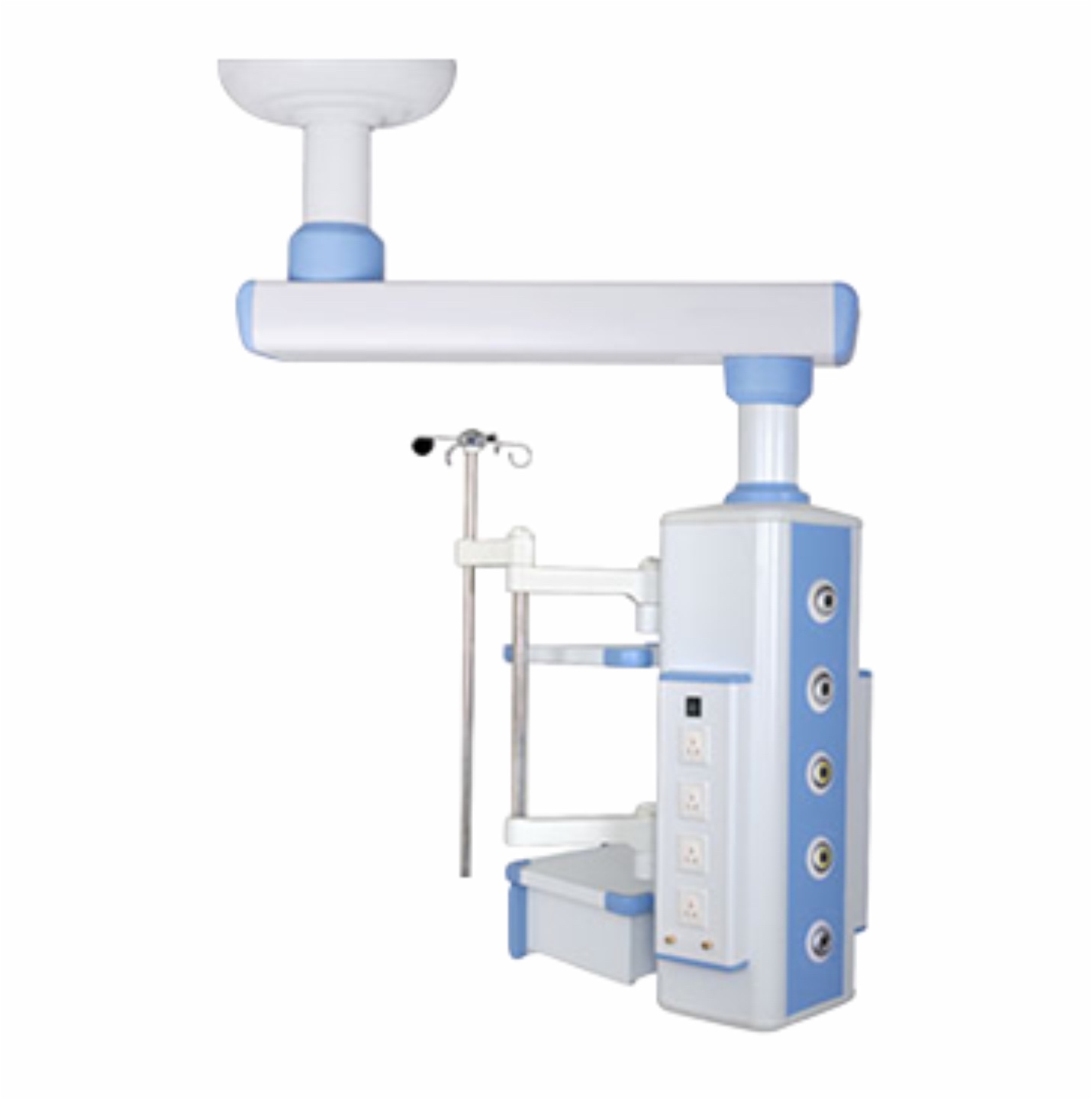

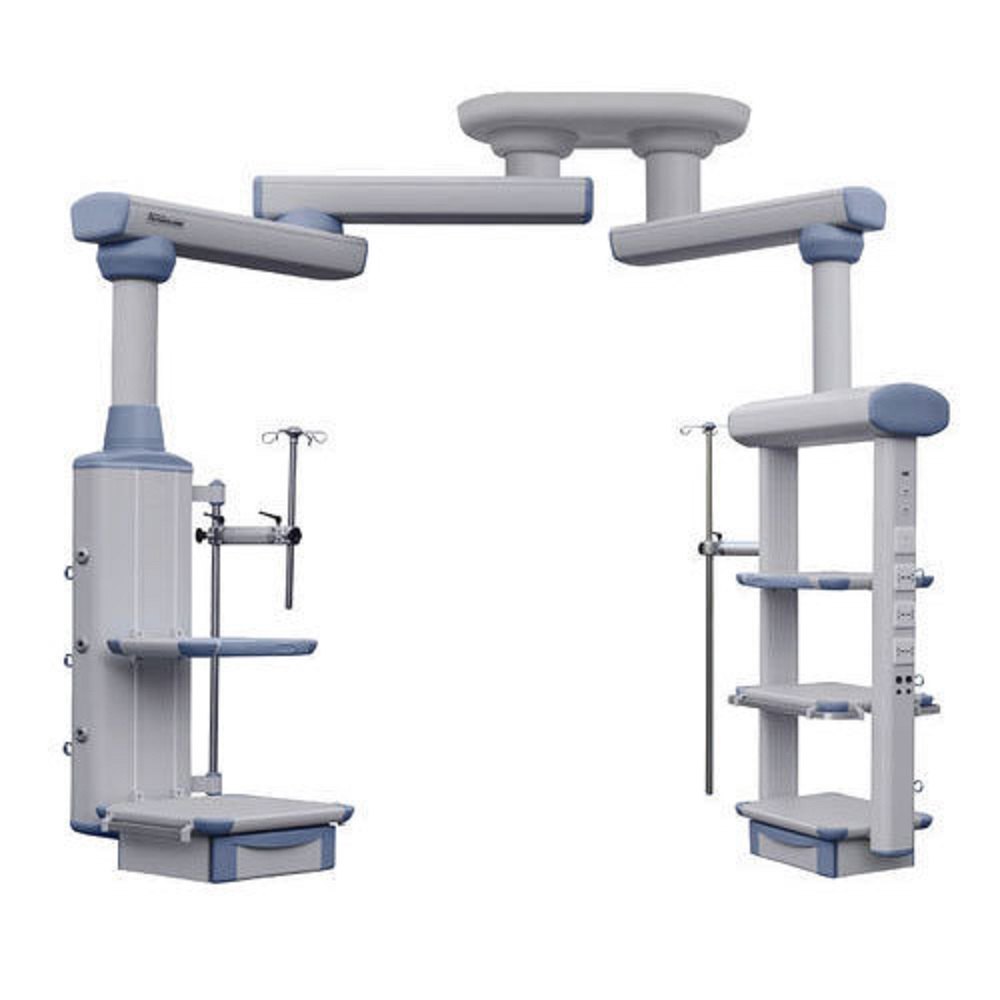

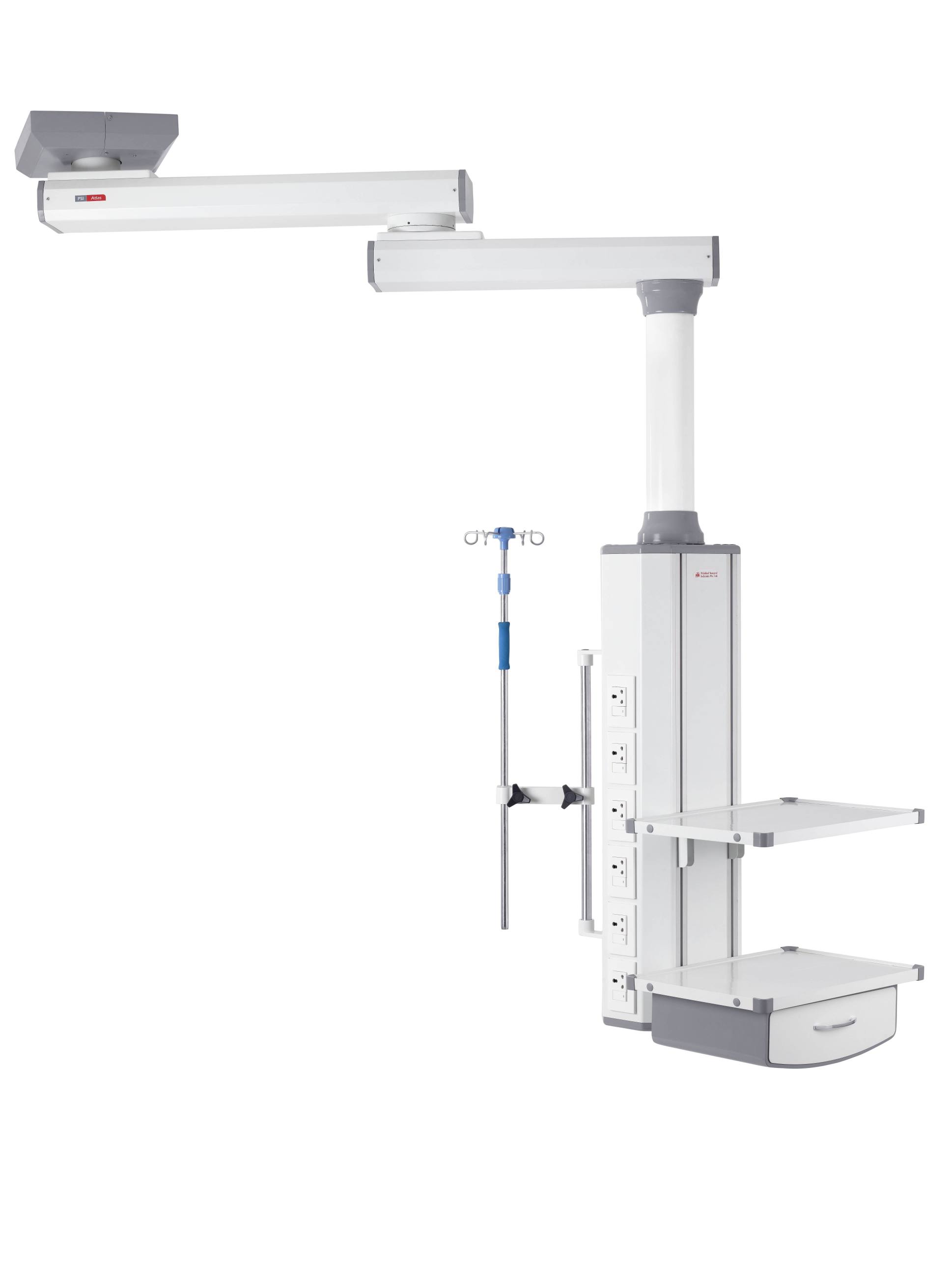

Photos
